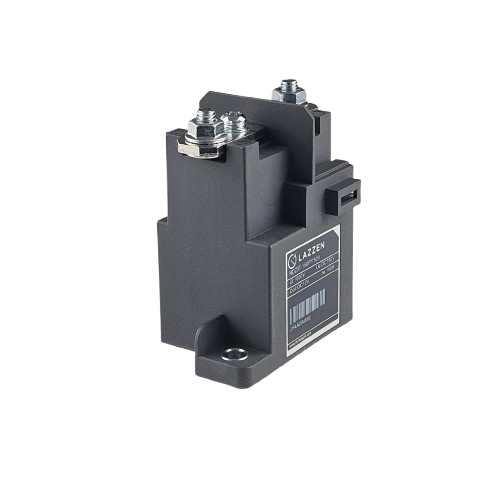

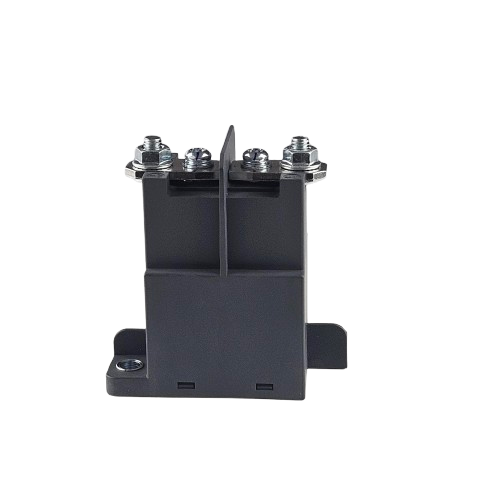

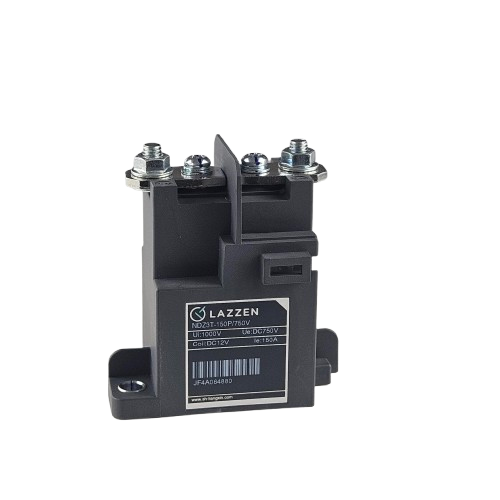

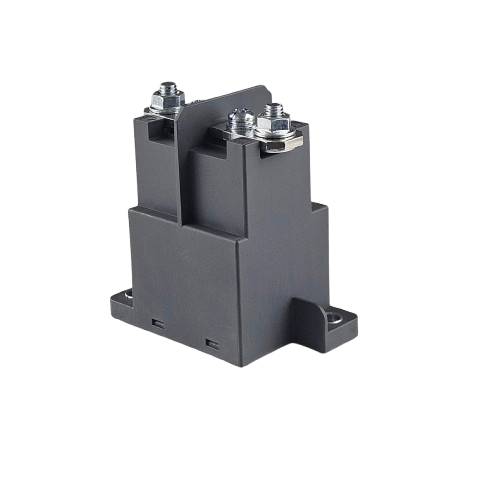

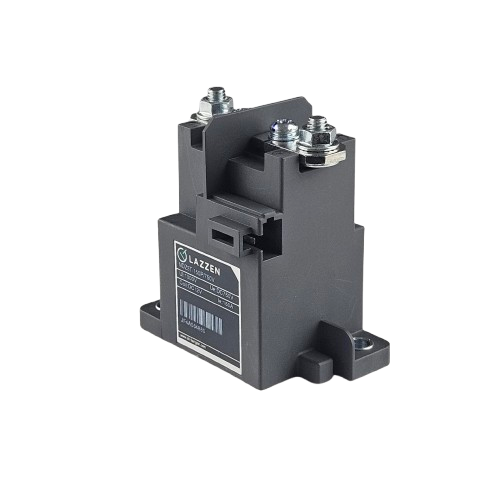

Product Name
|
NDZ3T-150P
|
|
Main Contact Form
|
1NO
|
|
Operating Voltage Range
|
DC 12~750V
|
|
Rated Operating Current
|
150A
|
|
Contact Resistance
|
≤5mΩ (at150A)
|
|
Short-time Withstand Current
|
3750A for 30ms, 300A continuous
|
|
Control Coil
|
Rated Voltage Uc: DC12V, 24V
Operating Voltage: DC9 - 36V
Power Consumption: 3.6W/3.6VA
Coil Polarity: Polarized
Operating Voltage: ≤9V
Release Voltage: ≥1.2V
Closing Time: ≤35ms
Opening Time: ≤20ms
Bounce - back Time: ≤5ms
|
|
Auxiliary Contact
|
Type: None, 1NO, 1NC, 1NC + 1NO
Rated Current/Voltage: 2A/DC30V, 3A/AC125V
Minimum Switchable Load: 100mA/8V
|
|
Maximum Breaking Current
|
DC320V 2000A, 1 time
|
|
Insulation Resistance
|
100MΩ at DC 500V
|
|
Power Frequency Withstand Voltage
|
AC3500V for 60s, Leakage Current ≤1mA
|
|
Mechanical Life
|
1,000,000 cycles, 1200 cycles/hour
|
|
Electrical Life
|
DC500V 300A for 6000 cycles
DC750V 150A for 1000 cycles
DC1000V 300A for 300 cycles
DC1000V 300A for 10 cycles
|
|
Impulse Stability
|
30g when closed, 20g when opened
|
|
Impact Strength
|
/
|
|
Operating Humidity
|
5%~85%
|
|
Weight
|
Approximately 460g
|
|
Product Certification
|
CCC, CB, CE, TUV, UL
|
