Item
|

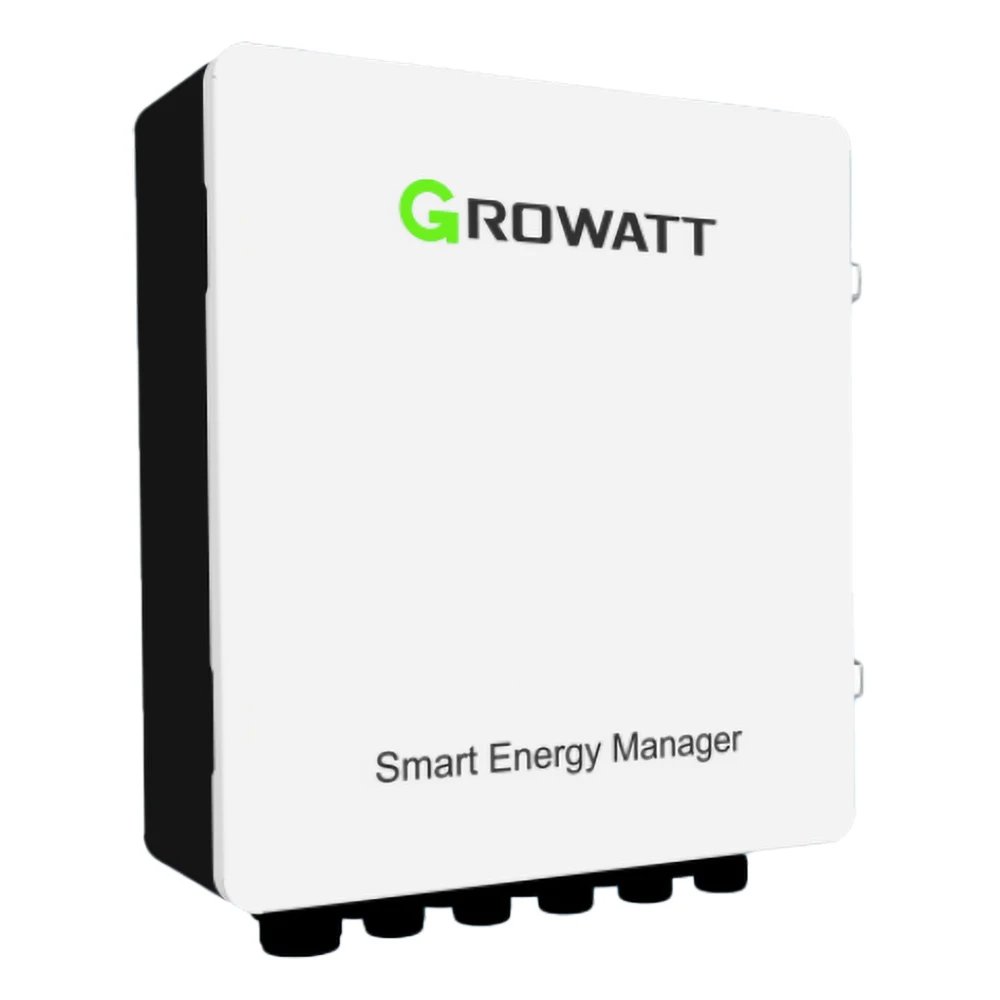

ShineSEM-XA-R
|
|
RS485
|
Yes
|
|
Ethernet
|
Yes
|
|

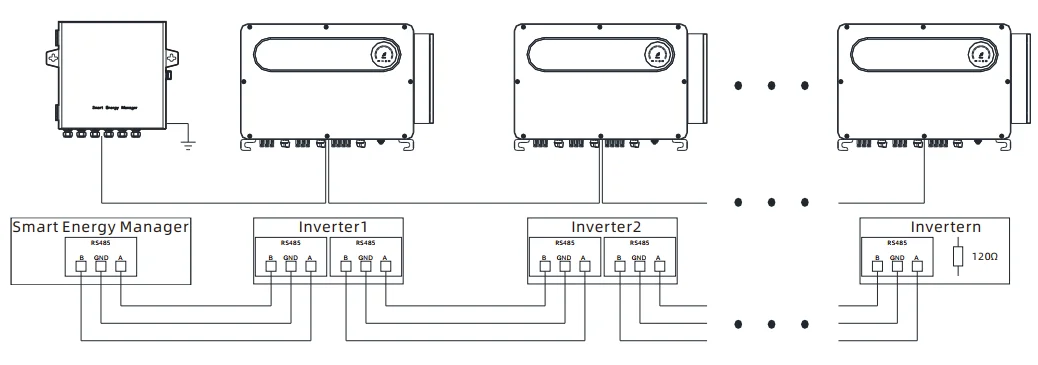

Max. inverter number
|
36 PCS
|
|
General Data
|
|
|

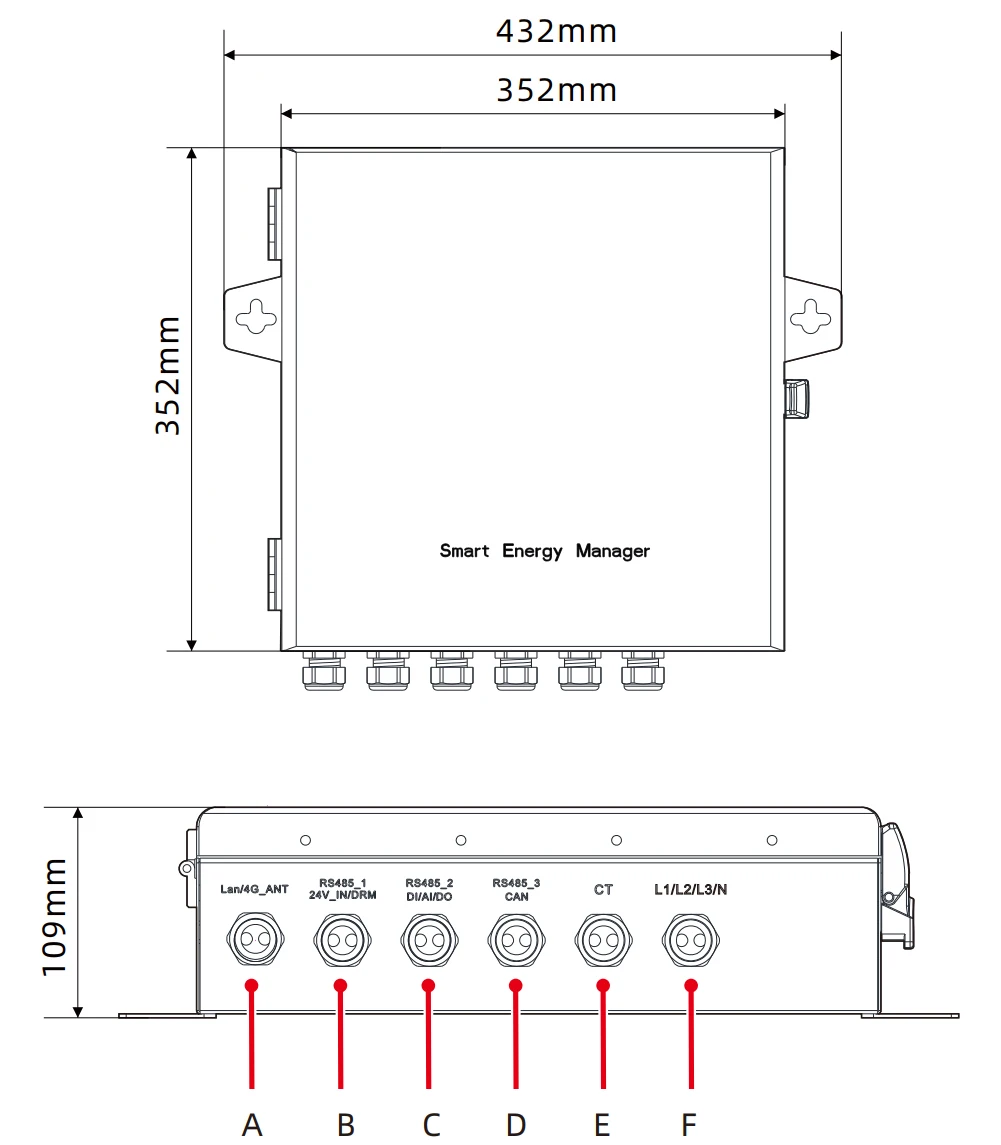

Dimension(W/H/D)
|
352*430*109mm
|
|
Weight
|
8.7kg
|
|
Operation temperature range
|
-22°F to+149°F(-30°C~65°C)
|
|
Protection class
|
IP66
|
|
Relative humidity
|
5%~95%, no-condensing
|
|
Placement
|
Indoor
|
|
Altitude
|
4000m
|
|
Meter Data
|
|
|
Nominal input voltage
|
380/400V
|
|
Nominal input frequency
|
50/60Hz
|
|
Grid connection
|
3W+N+PE
|
|
CE, RoHS
|
|
