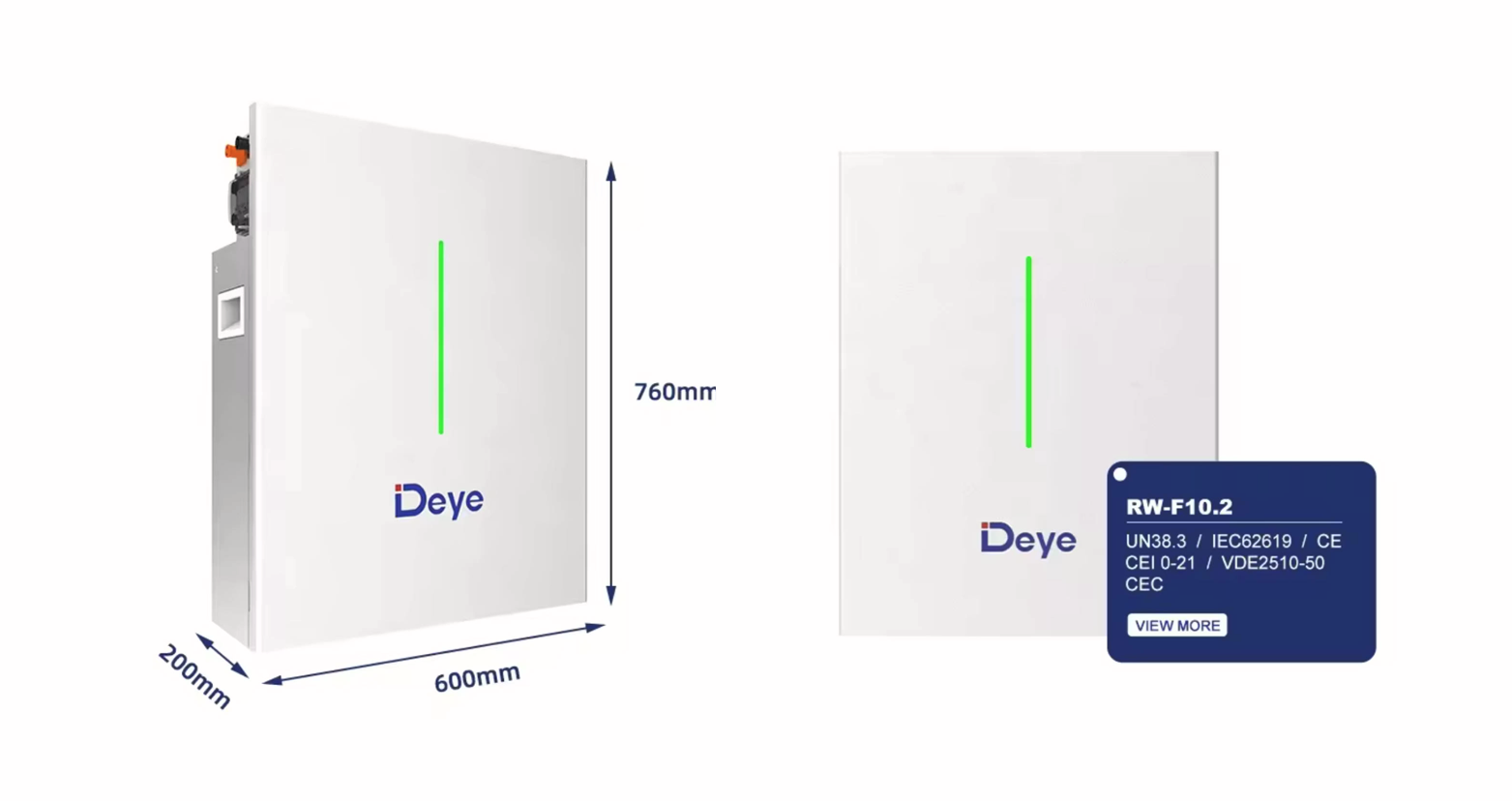

Product Images
|
Model
|
RW-F10.2
|
RW-F10.2-B
|
|
Main Parameter
|
LiFePO4
|
|
|
Built-in Circuit Breaker
|
125A 4P, 60Vdc
|
|
|
Capacity (Ah)
|
200
|
|
|
Scalability
|
Max. 32 pcs pack (Max.326kWh) in parallel
|
Max. 32 pcs pack (Max.327kWh) in parallel
|
|
Nominal Voltage (V)
|
51.2
|
|
|
Operating Voltage (V)
|
43.2~57.6
|
|
|
Nominal Energy (kWh)
|
10.2
|
10.24
|
|
Usable Energy (kWh)
|
9.2 (90%DOD)
|
|
|
Dimension (W/H/D, mm)
|
600*760*200 (Without hanging board)
|
600*830*200 (Without hanging board)
|
|
Weight Approximate (kg)
|
104
|
107
|
|
IP Rating of Enclosure
|
IP65
|
|
|
Operating Temperature
|
Charge: 1°C~55°C / Discharge: -20°C~55°C
|
|
|
Altitude
|
≤3000m
|
|
|
Cycle Life
|
≥6000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
|
|
|
Installation
|
Wall-Mounted, Floor-Mounted
|
|
|
Communication Port
|
CAN2.0, RS485
|
|
|
Warranty Period
|
10 years
|
|
|
Energy Throughput
|
32MWh (25°C, 0.5C/0.5C, 70%EOL)
|
|
|
Certification
|
UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50,
CEC |
UN38.3, FCC, UL1973, UL9540A
|
