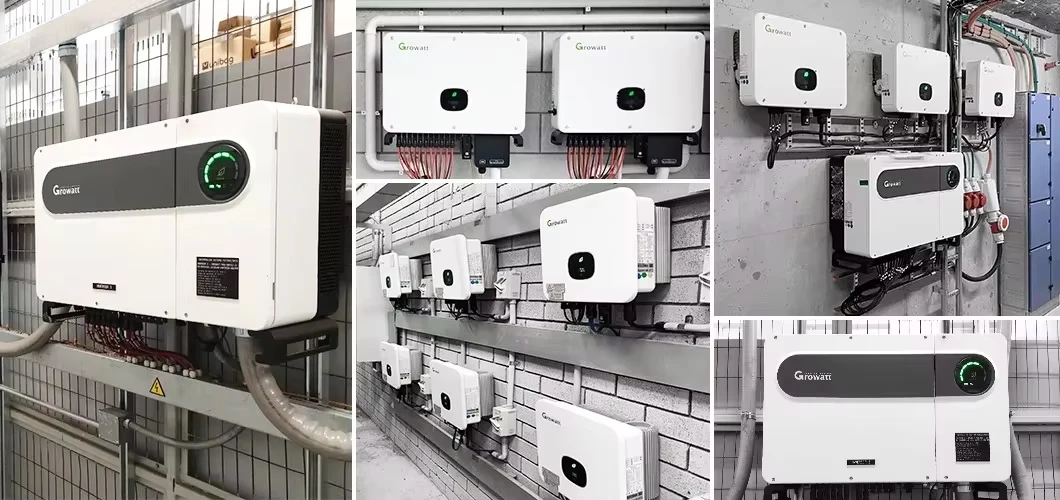

Item
|
MAX 124KTL3-X2 MV
|
MAX 125KTL3-X2 MV
|
MAX 136KTL3-X2 MV
|
MAX 150KTL3-X2 MV
|
|
Input data (DC)
|
||||
|
Max. recommended PV power (for module STC)
|
186000W
|
187500W
|
204000W
|
204000W
|
|
Max. DC voltage
|
1100V
|
|||
|
Start voltage
|
195V
|
|||
|
Nominal voltage
|
720V
|
|||
|
MPP voltage range
|
180V-1000V
|
|||
|
No. of MPP trackers
|
8
|
|||
|
Max. input current per MPP tracker
|
45A
|
|||
|
Max. short-circuit current per MPP tracker
|
56.5A
|
|||
|
Output data (AC)
|
||||
|
AC nominal power
|
124000W
|
125000W
|
136000W
|
150000W
|
|
Max. AC apparent power
|
136400VA
|
137500VA
|
150000VA
|
165000VA
|
|
Nominal AC voltage (range*)
|
277V/480V
422-528VAC
|
|||
|
AC grid frequency (range*)
|
50/60 Hz (45~55Hz/59.5-60.5 Hz)
|
|||
|
Max. output current
|
164.1A
|
165.4A
|
179.9A
|
198.5A
|
|
Adjustable power factor
|
0.8leading 0.8lagging
|
|||
|
THDi
|
<3%
|
|||
|
AC grid connection type
|
3W/PE
|
|||
|
Efficiency
|
||||
|
Max.efficiency
|
99.00%
|
|||
|
European efficiency
|
98.50%
|
|||
|
MPPT efficiency
|
99.90%
|
|||
|
Protection devices
|
||||
|
DC reverse polarity protection
|
Yes
|
|||
|
DC switch
|
Yes
|
|||
|
AC/DC surge protection
|
Type II / Type II
|
|||
|
Insulation resistance monitoring
|
Yes
|
|||
|
AC short-circuit protection
|
Yes
|
|||
|
Ground fault monitoring
|
Yes
|
|||
|
String detection
|
Yes
|
|||
|
Anti PID function
|
Optional
|
|||
|
Arc fault detection (AFCI)
|
Optional
|
|||
|
General data
|
||||
|
Dimensions (W / H / D)
|
970/640/345mm
|
|||
|
Weight
|
84kg
|
|||
|
Operating temperature range
|
–30°C ... +60°C
|
|||
|
Nighttime power consumption
|
< 1W
|
|||
|

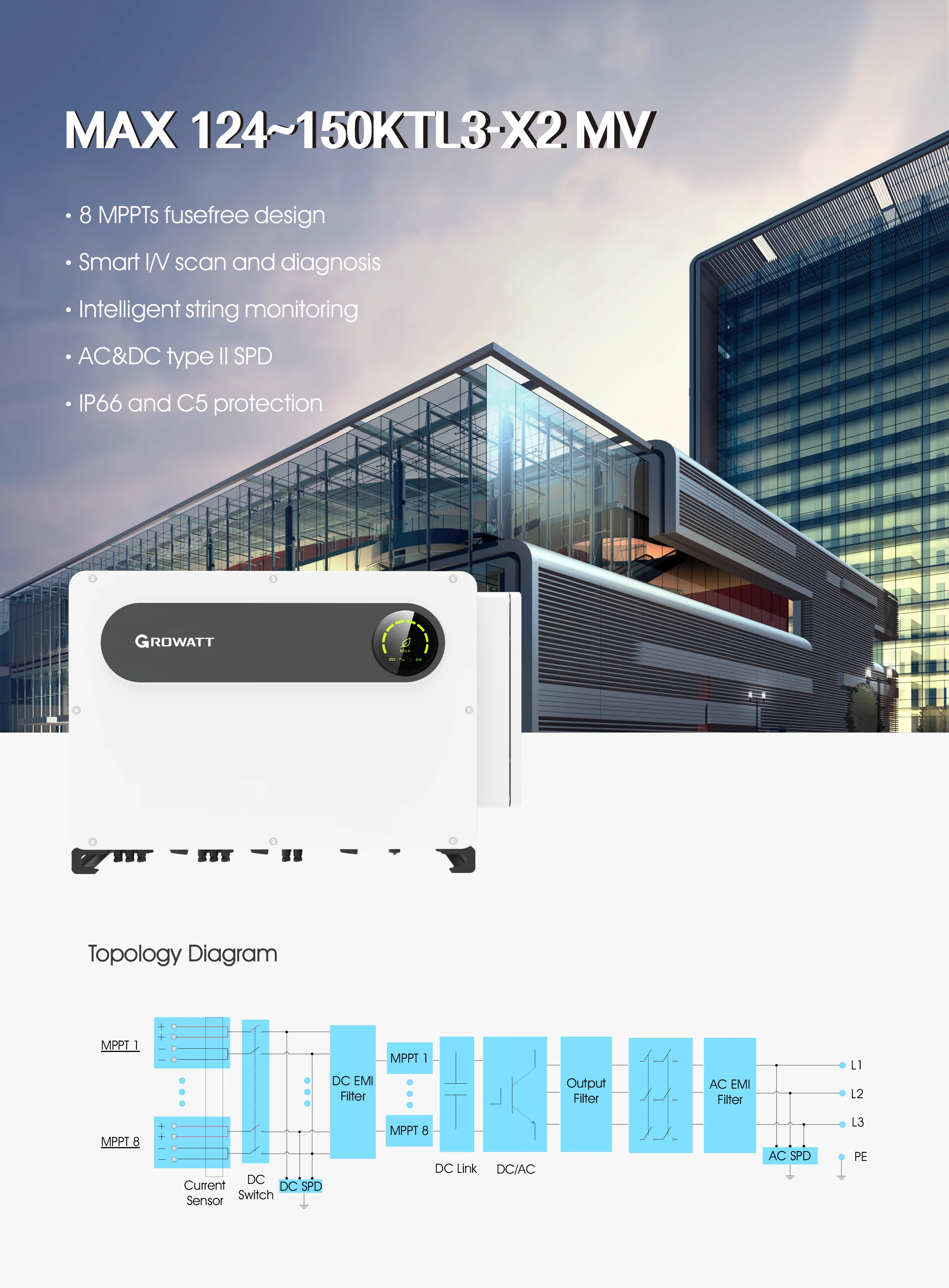

Topology
|
Transformerless
|
|||
|
Cooling
|
Smart Cooling
|
|||
|
Protection degree
|
IP66
|
|||
|
Relative humidity
|
0~100%
|
|||
|
Altitude
|
4000m
|
|||
|
DC connection
|
H4/MC4(Optional)
|
|||
|
AC connection
|
Cable gland+OT terminal
|
|||
|
Display
|
LED/WIFI+APP
|
|||
|
Interfaces: RS485 / USB /PLC
|
Yes/Yes/Optional
|
|||
|
Warranty:5/10 years
|
Yes/Optional
|
|||
|
CE, IEC62116, IEC61727, UL1741, IEEE1547
|
||||
|
* The AC voltage range and frequency range may vary depending on specific country grid standard.
All specifications are subject to change without notice. |
||||
